ReFlex® GRAPHITE
Collection
6 fabrics · 1–10% openness
In ReFlex® the fabric is the colour. Openness is chosen per fabric — each model below carries its own opening.
Collection — models
Each fabric is the colour. The opening below is for that specific fabric — a physical sample is recommended for final selection.

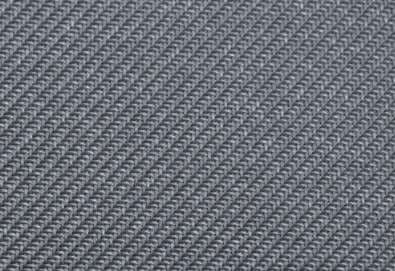

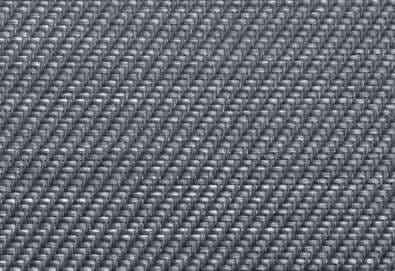

Simon1%- Loki3%

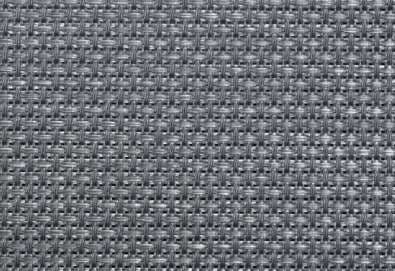

Asa5%

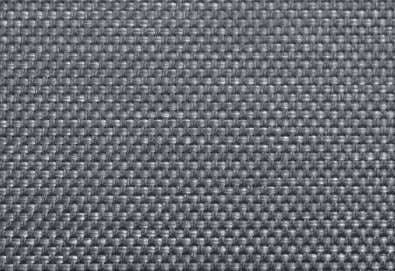

Nanna5%
Overview
The widest openness range in the ReFlex® lineup — six fabrics from 1% to 10% — in a deep charcoal palette suited to high-performance glazed facades.
GRAPHITE is specified when solar precision matters most. Six fabrics at four distinct openness factors — 1% and 3% for demanding solar orientations, 5% for balanced daylight and control, 10% for spaces where view preservation is part of the program — give the specifier a calibrated response to each facade's exposure and occupancy pattern. ReFlex® solar reflectance acts at the envelope before thermal gain reaches the interior, reducing cooling loads while maintaining connection to the exterior. Deep grey tones hold their architectural character from across the floor plate.
Six fabrics. Four openness factors. One consistent standard.
- Solar reflectance: ≥65% (ReFlex® standard floor; per-fabric reflectance available on request)
- UV protection (ReFlex® standard)
- Composition: 100% polyester (cationic), PVC-free
- Thickness: 0.45 mm ±5% · Weight: 175 g/m² ±35%
- Fire: DIN 4102 B1 · NFPA 701
- Textile certification: OEKO-TEX® Standard 100
- 100% recyclable · 10-year warranty (fabric, mechanisms, motors)
ReFlex® is 100% cationic polyester. Cationic dyeing requires lower water, energy, and chemical inputs compared to conventional polyester dyeing processes (qualitative; specific figures not published). The fabric is PVC-free and 100% recyclable, and it carries the OEKO-TEX® Standard 100 certification. These are material attributes — secondary to the solar control performance, which is the primary specification criterion.
