ReFlex® ONIX
Collection
4 fabrics · 5–10% openness
In ReFlex® the fabric is the colour. Openness is chosen per fabric — each model below carries its own opening.
Collection — models
Each fabric is the colour. The opening below is for that specific fabric — a physical sample is recommended for final selection.
- Saga5%
Vorr5%
Nott5%

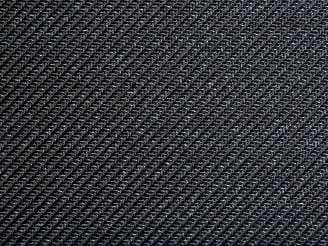

Búri10%
Overview
Four ReFlex® fabrics in carbon and charcoal tones. Openness factors of 5% and 10%, calibrated for facades where the visual weight of the textile is part of the specification.
ONIX is specified for openings where tonal continuity with dark architectural surfaces matters — concrete, corten, dark glass. ReFlex® solar reflectance operates independently of the fabric tone: incident solar radiation is reflected at the textile surface before it becomes thermal load, reducing the cooling demand on the space and providing UV protection regardless of the deep color. Charcoal at eye level. Reflective solar control at the building envelope.
Four fabrics. Two openness factors. One consistent standard.
- Solar reflectance: ≥65% (ReFlex® standard floor; per-fabric reflectance available on request)
- UV protection (ReFlex® standard)
- Composition: 100% polyester (cationic), PVC-free
- Thickness: 0.45 mm ±5% · Weight: 175 g/m² ±35%
- Fire: DIN 4102 B1 · NFPA 701
- Textile certification: OEKO-TEX® Standard 100
- 100% recyclable · 10-year warranty (fabric, mechanisms, motors)
ReFlex® is 100% cationic polyester. Cationic dyeing requires lower water, energy, and chemical inputs compared to conventional polyester dyeing processes (qualitative; specific figures not published). The fabric is PVC-free and 100% recyclable, and it carries the OEKO-TEX® Standard 100 certification. These are material attributes — secondary to the solar control performance, which is the primary specification criterion.
